Qudelix T71 System Review

Redefining Multi-Channel Audio in the IEM Space

The pursuit of immersive audio in a portable format has led to numerous innovations over the years, but few have taken as bold an approach as Qudelix with their T71 system. At first glance, it might appear to be just another high-end DAC/IEM combination, but beneath the surface lies a fundamentally different approach to personal audio that challenges our traditional understanding of how IEMs can deliver spatial audio.

A New Direction in Personal Audio

The audio industry has long wrestled with the challenge of delivering convincing surround sound through headphones. Most solutions rely on complex digital signal processing and binaural rendering to create the illusion of space. Qudelix, however, has taken a radically different approach with the T71 system, implementing a physical solution to a traditionally digital problem.

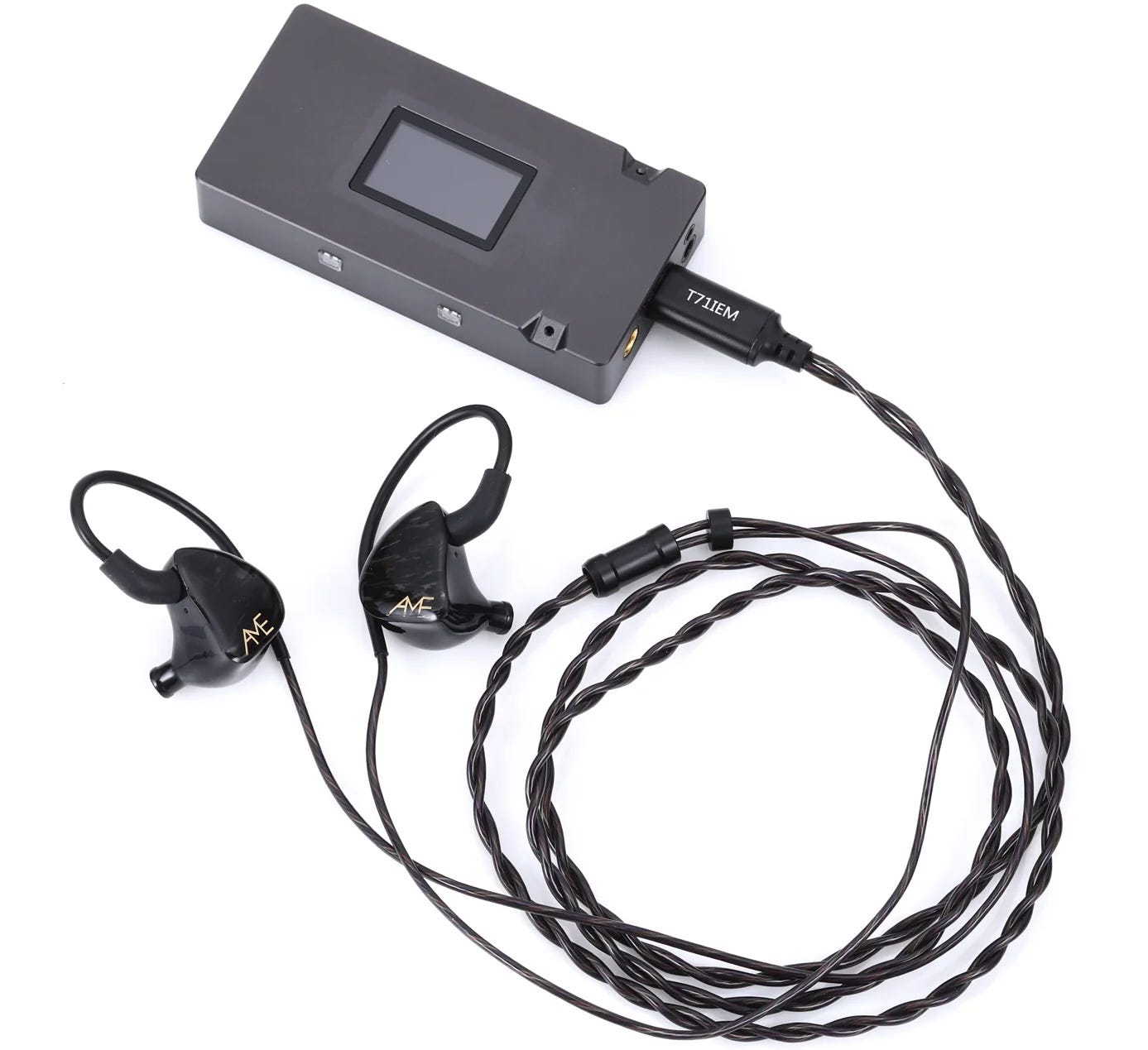

At the heart of this system is the T71 DAC, a compact yet powerful device that distinguishes itself through its ability to process and output true multi-channel audio. Unlike conventional portable DACs that handle stereo signals, the T71 can receive and process up to eight channels of digital audio. This capability is enabled by a sophisticated quad ES9219 Sabre DAC configuration, effectively doubling the processing power found in their popular 5K model.

The real innovation, however, emerges in how this multi-channel processing is utilized. Rather than downmixing these channels into a stereo signal, the T71 DAC maintains discrete channel separation through a specialized USB-C output. This output feeds into the equally innovative T71 IEMs, which feature a unique four-driver setup in each earpiece specifically designed to recreate a 7.1 surround sound environment.

Engineering Marvel with Practical Compromises

The T71 IEMs represent a fascinating exercise in acoustic engineering. Each earpiece contains four precisely positioned drivers that work in concert to create distinct sound sources within the ear canal. This approach bypasses the need for digital spatial processing entirely, instead relying on the physical positioning and sonic characteristics of drivers to create a sense of space.

The implementation, however, comes with some noteworthy compromises. The most significant is the requirement for a proprietary 10-wire USB-C connection between the DAC and IEMs. This means the T71 IEMs are exclusively compatible with their companion DAC – a limitation that might give pause to those accustomed to the flexibility of traditional IEMs. The system also foregoes wireless connectivity entirely, requiring a direct USB connection to the source device.

Beyond Surround Sound: A Tuner's Paradise

While the surround sound capabilities of the T71 system present mixed results in practice, the system reveals its true potential in an unexpected area: unprecedented driver customization. Through a comprehensive web-based interface, users gain access to something previously unheard of in consumer IEMs – the ability to individually tune each driver in the system.

This level of control transforms the T71 from a mere surround sound solution into a sophisticated platform for acoustic experimentation. Users can apply specific equalization settings to each driver, implement various filter types, and even mute individual drivers to understand their contribution to the overall sound signature. This granular control over the acoustic presentation opens up possibilities that were previously available only to IEM manufacturers during the development phase.

The Spatial Audio Experience

In practice, the T71's approach to spatial audio produces interesting, if not entirely convincing, results. The system excels at positioning sounds behind the listener, creating a convincing sense of rear-channel immersion. However, the front soundstage presents a unique challenge – the intimate nature of IEM presentation places the listener seemingly within the center channel, with most of the sound image occurring behind the listening position.

This characteristic creates an unusual spatial perspective that, while distinct from traditional headphone surround sound, may not align with listeners' expectations of spatial audio. It's less like sitting in a theater and more like being on stage with the sound system behind you – an interesting perspective, but perhaps not the intended one.

Conclusion

The Qudelix T71 system represents more than just another entry in the growing field of high-end personal audio devices. It demonstrates a willingness to challenge fundamental assumptions about how we can deliver immersive audio in a portable format. While its implementation of surround sound may not be perfect, the system's driver-level customization capabilities point toward exciting possibilities for the future of personal audio.

For audio enthusiasts interested in exploring the boundaries of what's possible with IEM tuning, the T71 system offers unprecedented control and flexibility. It may not replace your everyday IEMs, but it opens up new avenues for understanding and manipulating multi-driver IEM configurations. In this regard, the T71 system might be better understood not as a final solution for portable surround sound, but as a glimpse into the future of personalized audio experiences.
